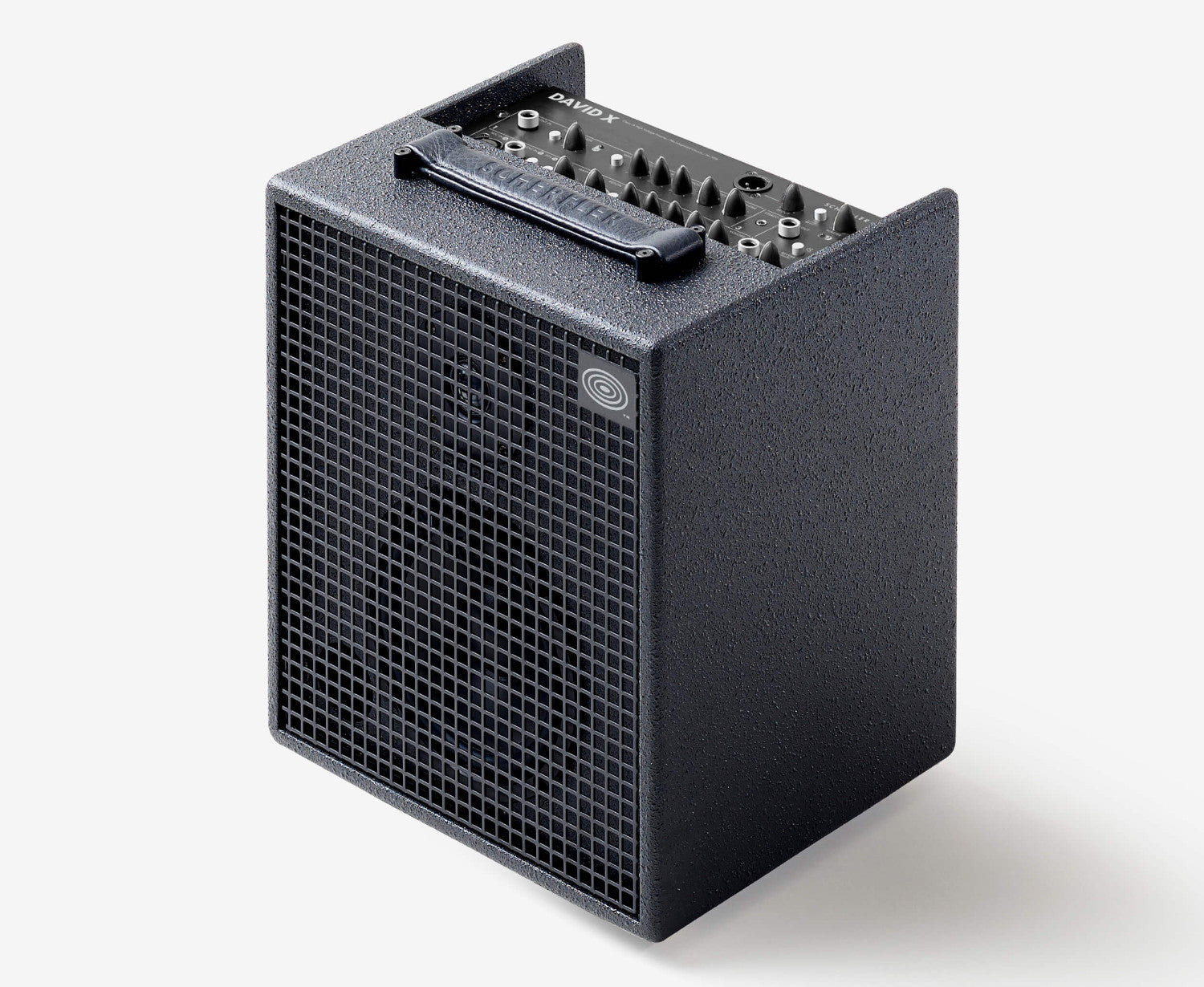

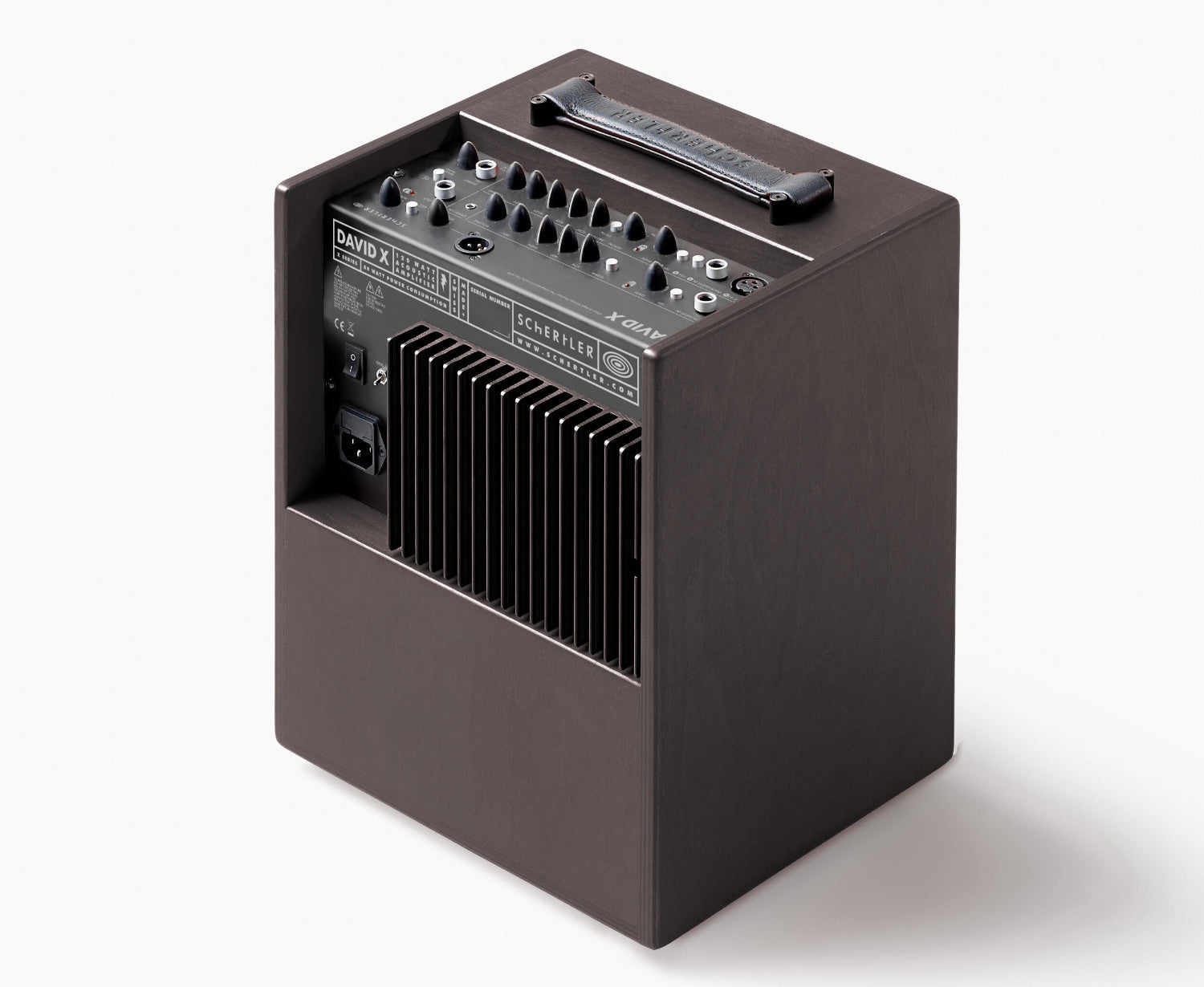

Schertler DAVID X 120W Acoustic Instrument Amplifier

The Schertler DAVID X is a premium three-channel amplifier designed for natural and detailed amplification of classical and acoustic guitars, other acoustic instruments and vocals.

Its 120-watt pure analogue, bi-amplified power section drives a 6-inch woofer and 1-inch dome tweeter. The optimized two-way bass-reflex cabinet delivers clear projection, excellent dynamics and a maximum sound-pressure level of 112 dB.

The DAVID X provides dedicated microphone and instrument inputs, together with a stereo input for a playback device. Phantom power supports compatible microphones and instrument pickups, while the integrated spring-style digital reverb adds natural ambience.

Schertler’s Class-A preamplifier uses no integrated circuits and no negative feedback, helping preserve the natural character, dynamics and transient response of the instrument.

Compact enough for rehearsals and studio use yet powerful enough for live performance, the DAVID X is made in Switzerland and available in dark wood or anthracite finishes.

SPECIFICATIONS

Brand: Schertler
Model: DAVID X
Product type: Acoustic instrument amplifier
Channels: Three
Power output: 120 W pure analogue power
Maximum SPL: 112 dB
Frequency response: 45 Hz–20 kHz
Speaker system: 6-inch woofer and 1-inch dome tweeter
System design: Two-way, bi-amplified bass reflex
Cabinet construction: 12 mm laminated birch
Preamplifier: Class A, without integrated circuits or negative feedback
Microphone input: XLR
Instrument input: Unbalanced 6.35 mm jack
Stereo input: 3.5 mm stereo jack
Line output: 6.35 mm jack
DI output: XLR
DI output level: −∞ to +6 dBu
Master insert: Yes
Phantom power: 24 V DC through XLR and 10 V DC through instrument input
Effect: Spring-style digital reverb
Stand mounting: 36 mm flange
Dimensions: 29.5 × 25.5 × 35.5 cm
Weight: 11 kg
Available finishes: Dark wood and anthracite
Made in: Switzerland
Condition: New

FEATURES

• Natural amplification for acoustic instruments and vocals

• 120-watt bi-amplified analogue power section

• Three independent input options

• Class-A preamplifier

• Integrated digital reverb

• Microphone and instrument phantom power

• Balanced XLR DI output

• Compact, portable cabinet

• Suitable for practice, studio work and live performance
